Wiper Switch: Installation
To install, reverse removal procedure.

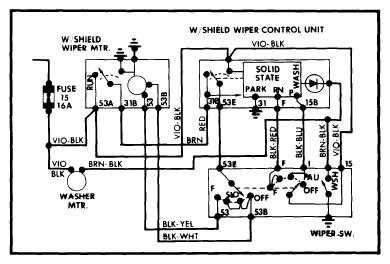

Fig 1: BMW Wiper/Washer Wiring Diagram (All Models)
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
