633CSi Automatic Trans
>>
Repair and Diagnosis
>>
Engine Performance
>>
Fuel Delivery
>>
Sub-System Wiring Diagrams - Fuel Injection Systems
>>
Wiring Diagram
Sub-System Wiring Diagrams - Fuel Injection Systems: Wiring Diagram

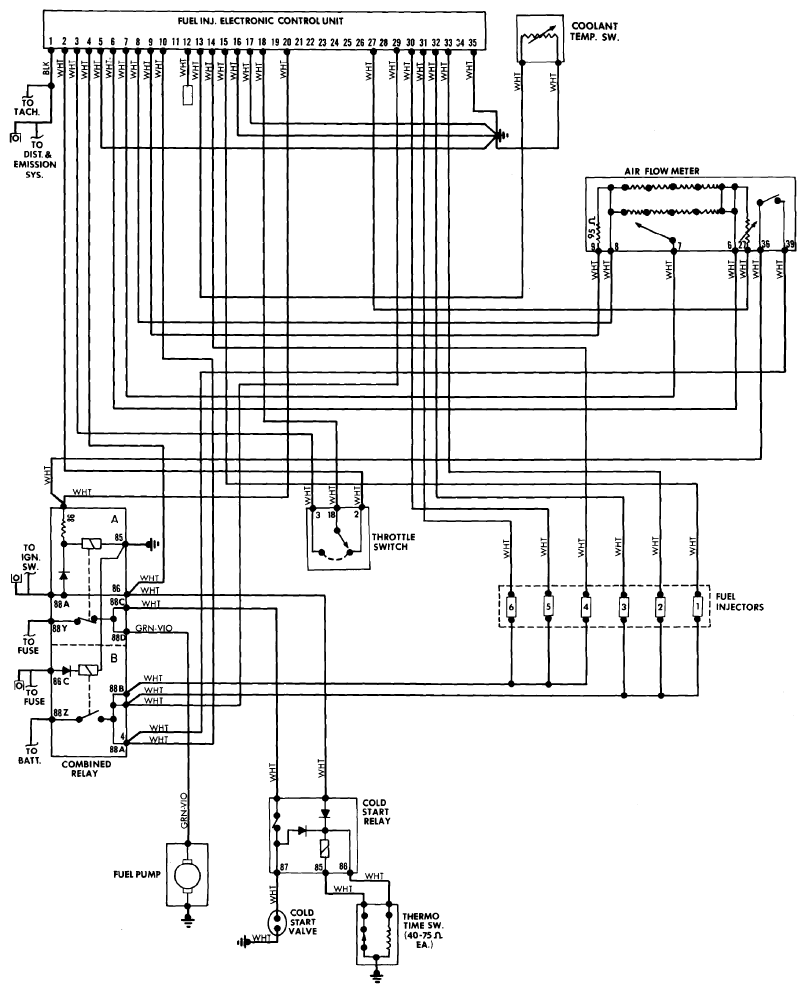

Fig 1: Fuel Injection System Wiring Diagram (BMW 633CSi and 733i)
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
