Sub-System Wiring Diagrams - Fuel Injection Systems: Wiring Diagram

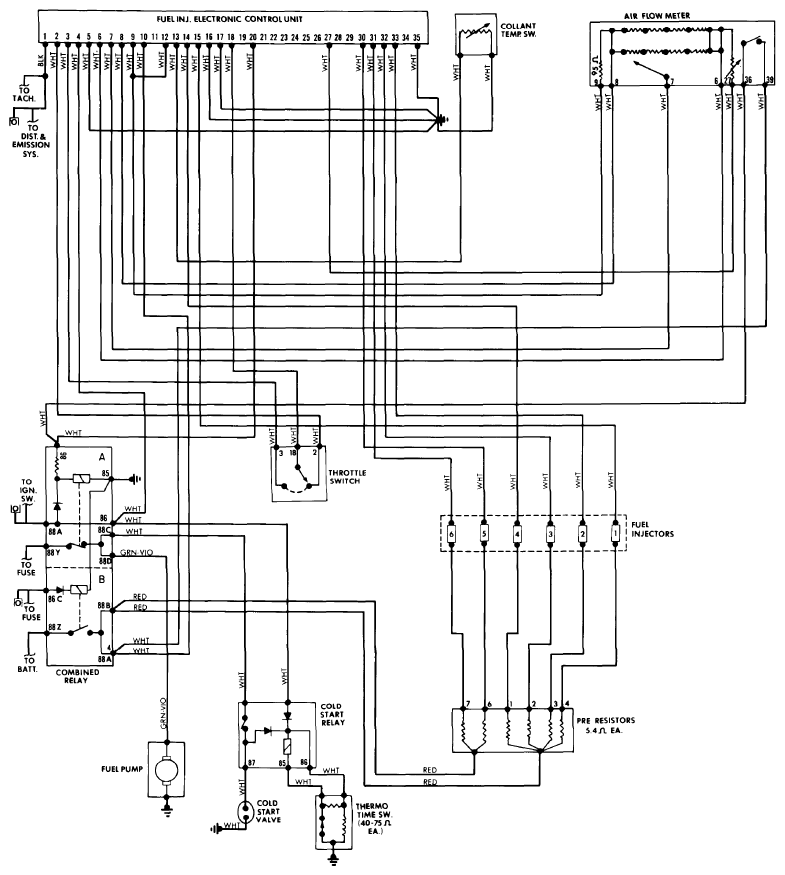

Fig 1: Fuel Injection System Wiring Diagram (BMW 630 CSi)

G09303382

Courtesy of BMW OF NORTH AMERICA, INC.
