Engine Does Not Run Smoothly Under Partial Load

Throttle butterfly sticking or misadjusted. Spherical shell for intermediate shaft in warm-up sensor loose or out of position. Connection rod between pump and intermediate shaft too long. Injection pump misadjusted.

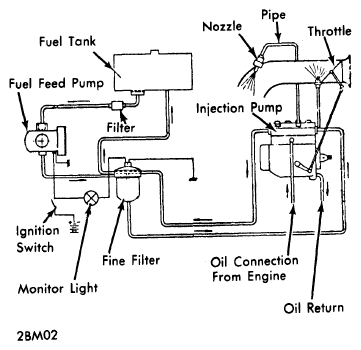

Fig 1: FUEL SYSTEM

Courtesy of NOT AVAILABLE
