KUGELFISCHER Fuel Injection: Operation: Cone

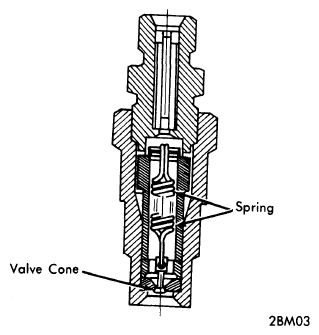

Cone valve type which opens towards the combustion chamber. Valve cone is drawn into the valve seat by a double tension spring. The angle of the cone and the tension of the spring determine angle of spray and the opening pressure.
