Rear Suspension: Description

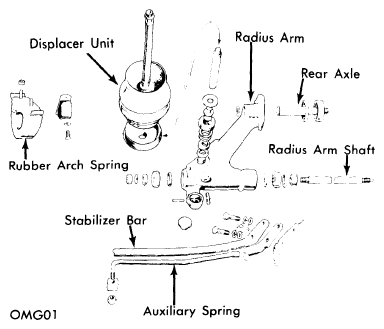

Rear suspension is hydrolastic type consisting of a sub frame, two displacer units and radius arms. Early models have auxiliary springs and a stabilizer bar. Later models have rubber arch springs. Displacer unit consists of a piston, diaphragm, upper and lower chamber housing, and a conical spring of compressed rubber.
