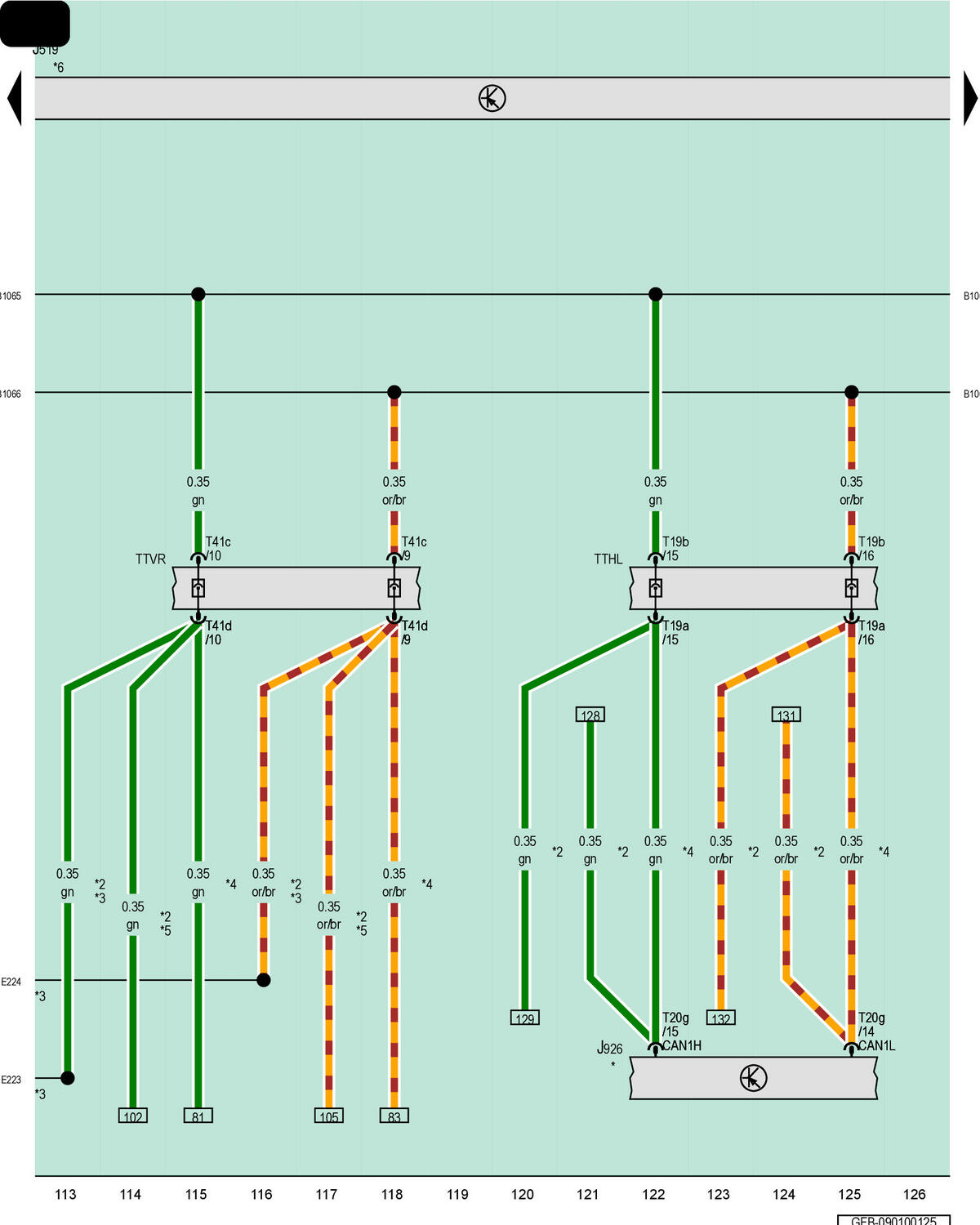

Vehicle Electrical System Control Module
J519
Vehicle Electrical System Control Module
J926
Driver Side Rear Door Control Module
T19a
19-Pin Connector, Black
T19b
19-Pin Connector, Black
T20g
20-Pin Connector, White
T41c
41-Pin Connector, Black
T41d
41-Pin Connector, Black
TTHL
Left Rear Door Coupling Point
TTVR
Right Front Door Coupling Point
B1065
CAN Bus 1, J519 High Connection 1 (in Main Wiring Harness)
B1066
CAN Bus 1, J519 Low Connection 1 (in Main Wiring Harness)
E223
CAN Bus 1, J519 High Connection 1 (in Door Wiring Harness)
E224
CAN Bus 1, J519 Low Connection 1 (in Door Wiring Harness)
*
Refer to Applicable Driver Door Control Module Wiring Diagram
*2
For RHD Vehicles
*3
For Vehicles with Cell Phone Access System
*4
For LHD Vehicles
*5
For Vehicles Without Cell Phone Access System
*6
Refer to Applicable Convenience System Wiring Diagram
