Overview - Control Module And Brake Pressure Unit

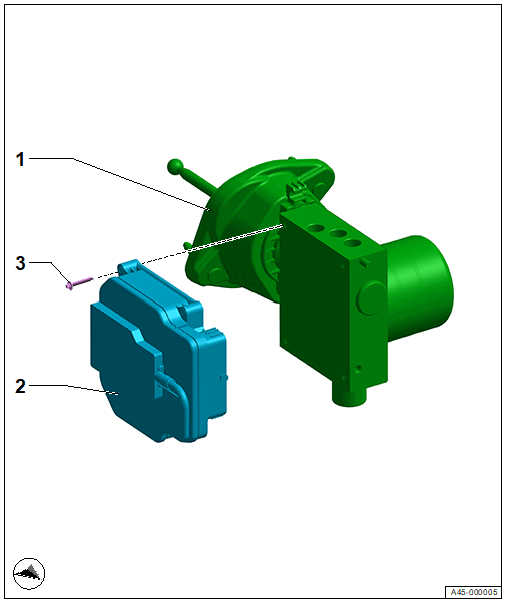

Fig 1: Identifying Control Module And Brake Pressure Unit

Courtesy of AUDI OF AMERICA, LLC

1. Brake Pressure Unit
   • Refer to OVERVIEW - BRAKE PRESSURE UNIT .
   • Refer to BRAKE PRESSURE UNIT, REMOVING AND INSTALLING, LHD .
2. ABS Control Module -J104-
   • Refer to CONTROL MODULE, DISCONNECTING FROM AND CONNECTING TO BRAKE PRESSURE UNIT  .
3. Bolt
   • Quantity: 4
   • Refer to Fig 2

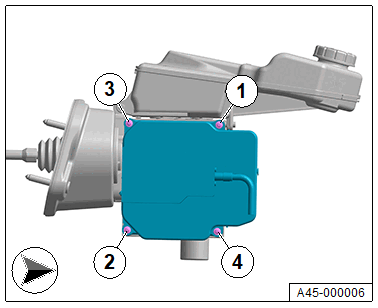

Fig 2: ABS Control Module Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

Tightening sequence	Tightening Specification
-1- through -4-	Until it stops
-1- through -4-	3 Nm
