Control Module, Disconnecting From And Connecting To Brake Pressure Unit: Removing
If the ABS Control Module -J104- is replaced:
-- Perform the "control module, replacing" function using the Vehicle diagnostic tester . Refer to DIAGNOSTIC ENTRIES .
Continuation
-- Remove the brake pressure unit. Refer to BRAKE PRESSURE UNIT, REMOVING AND INSTALLING, LHD .
Vehicles with protective plate:

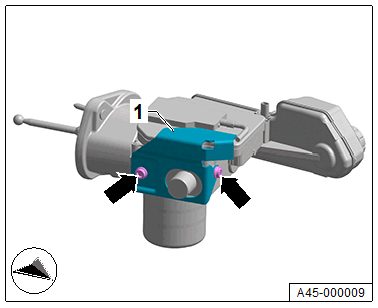

-- Remove the bolts -arrows- and the protective plate -1-.
Continuation for all vehicles

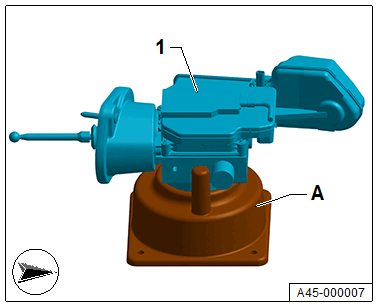

-- Position the brake pressure unit -1- in the Support Device : T40499 -A-.
Risk of damaging electrical components.
The electrostatic charge can damage electrical components.
- Procedures at the electrical components must only be performed at an electro-static discharge work surface.
-- Place the support device with brake pressure unit on the ESD Work Surface : VAS 6613 .

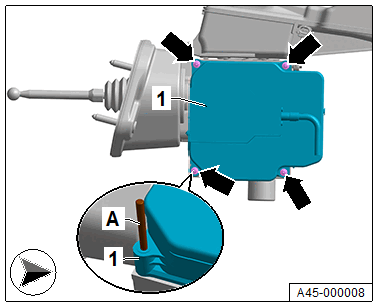

-- Remove the bolts -arrows- in a diagonal sequence one after the other and install the guide pins -A- from the repair kit.
-- Remove the control module -1- evenly over the guide pins -A-.
