Engine Top, Part II

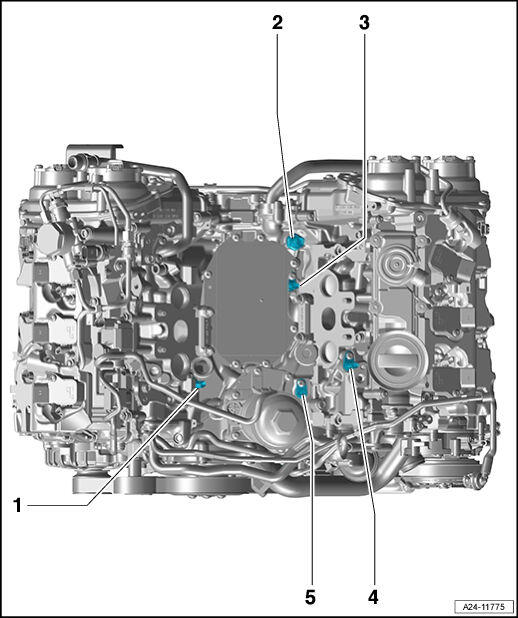

Fig 1: Identifying Top Engine Components (3.0L TFSI CWGD) (2 Of 2)
GWWA24-11775Courtesy of AUDI OF AMERICA, LLC
  1. 1 -  Engine temperature control sensor -G694-
  2. 2 -  Oil pressure switch -F22-
  3. 3 -  Oil temperature sensor -G8-
  4. 4 -  Engine coolant temperature sensor -G62-
  5. 5 -  Engine coolant temperature sensor on engine -G82-
