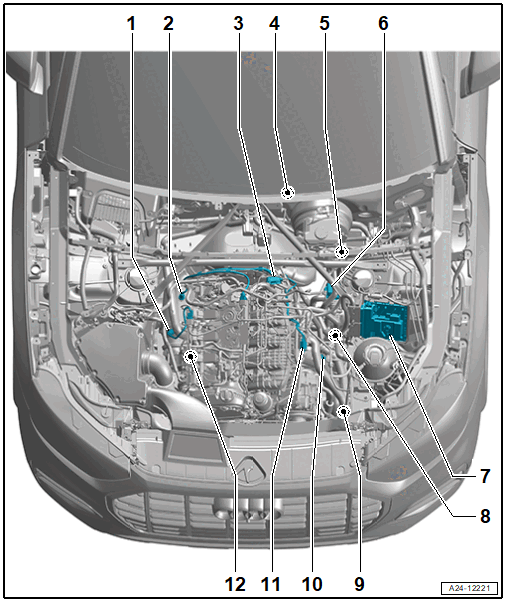

Engine Department
Courtesy of AUDI OF AMERICA, LLC
- 1 -
Oxygen Sensor 1 Before Catalytic Converter -GX10-
- 2 -
Oxygen Sensor 1 After Catalytic Converter -GX7-
- 3 -
Particulate Filter Differential Pressure Sensor -G1037-
- 4 -
Accelerator Pedal Module -GX2-
- 5 -
Brake Lamp Switch -F-
- 6 -
After-Run Coolant Pump -V51-
- 7 -
Engine/Motor Control Module -J623-
- 8 -
Left Electrohydraulic Engine Mount Solenoid Valve -N144-
- 9 -
Engine Coolant Temperature Sensor on Radiator Outlet -G83-
- 10 -
Charge Air Pressure Sensor -G31-
- 11 -
Dual Exhaust Temperature Sensor 1 -GX41-
- 12 -
Right Electrohydraulic Engine Mount Solenoid Valve -N145-
