Rear Axle Toe, Adjusting: Procedure

Courtesy of AUDI OF AMERICA, LLC

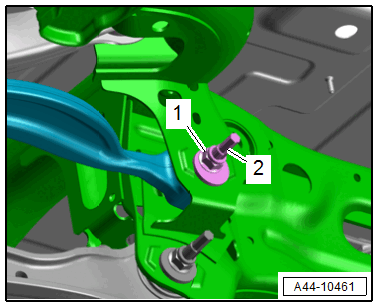

-- Remove the nut -1- from the threaded connection for the tie rod/subframe, and install the new nut all the way.

-- Adjust the toe by turning the eccentric bolt -2-.

NOTE:

To turn the eccentric bolt, turn the hex head at the >>top of the bolt<<.

NOTE:

The maximum adjustment range is 90° to left or right of center position.

The geometric drive axle is automatically changed when individual toe settings are changed.

-- Tighten the nut and check the toe value again. Refer to AXLE ALIGNMENT SPECIFIED VALUES .
