Control module for emergency call module and communication unit -J949-, THROUGH JUNE 2020: Notes

Component Location

Below front left seat.

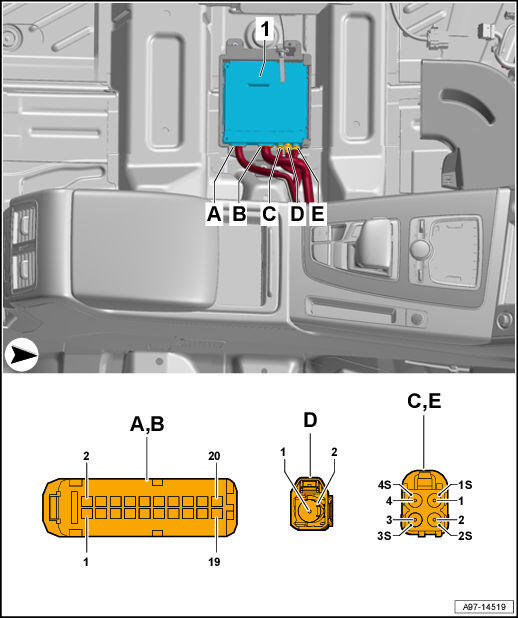

Fig 1: Control Module For Emergency Call Module And Communication Unit -J949-, Through June 2020 Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

1. 1 -  Control module for emergency call module and communication unit -J949-
2. A -  20-Pin Connector -T20i-, black
3. B -  20-Pin Connector -T20j-, naturally cloudy
4. C -  Not used
5. D -  2-Pin Connector -T2ja-, pink
6. E -  8-Pin Connector -T8bc-, black
