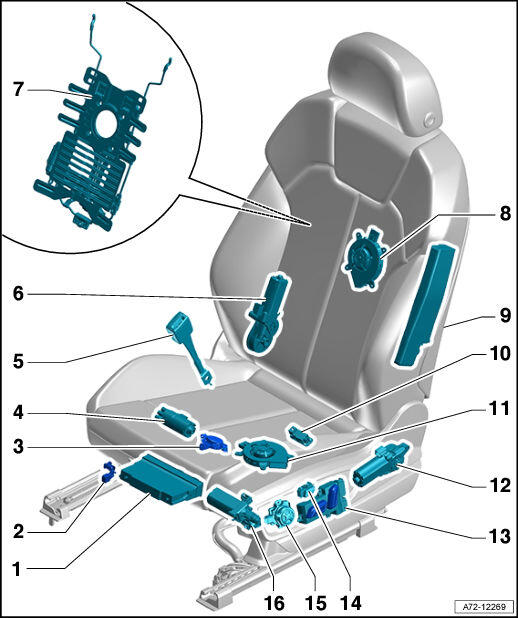

Seat Overview
Courtesy of AUDI OF AMERICA, LLC
- 1 -
Memory seat/steering column adjustment control module J136
- 1 -
Front passenger memory seat control module J521
- 2 -
Driver seat position sensor -G553-
- 2 -
Front passenger seat position sensor -G554-
- 3 -
Front passenger occupant detection sensor -G128-
- 4 -
Driver seat forward/back adjustment motor -V28-
- 4 -
Front passenger seat forward/back adjustment motor -V31-
- 5 -
Driver seat belt switch E24
- 5 -
Front passenger seat belt switch E25
- 6 -
Driver backrest adjustment motor -V45-
- 6 -
Front passenger backrest adjustment motor -V46-
- 7 -
Driver seat lumbar support curvature adjustment motor -V125-
- 7 -
Driver seat lumbar support height adjustment motor -V129-
- 7 -
Front passenger seat lumbar support curvature adjustment motor -V126-
- 7 -
Front passenger seat lumbar support height adjustment motor -V130-
- 8 -
Left front seat backrest fan 1 -V512-
- 8 -
Right front seat backrest fan 1 -V516-
- 9 -
Driver thorax airbag igniter N199
- 9 -
Front passenger thorax airbag igniter N200
- 10 -
Left rear footwell lamp -W45-
- 10 -
Right rear footwell lamp -W46-
- 11 -
Left front seat cushion fan 1 -V514-
- 11 -
Right front seat cushion fan 1 -V518-
- 12 -
Driver seat height adjustment motor -V245-
- 12 -
Front passenger seat height adjustment motor -V246-
- 13 -
Driver seat adjustment control head -E470-
- 13 -
Front passenger seat adjustment control head -E471-
- 14 -
Driver side massage function button -E670-
- 14 -
Front passenger massage function button -E671-
- 15 -
Driver seat switch module -E663-
- 15 -
Front passenger seat switch module -E664-
- 16 -
Driver seat angle adjustment motor -V243-
- 16 -
Front passenger seat angle adjustment motor -V244-
