3.0L TFSI CWGD

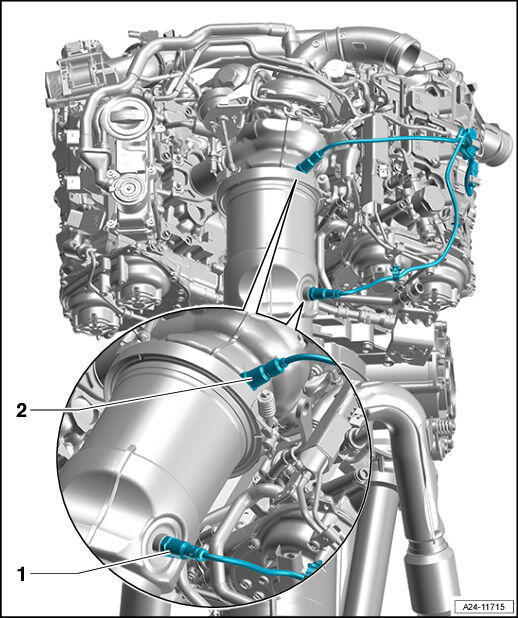

Fig 1: Identifying Exhaust Components (3.0L TFSI CWGD)
GWWA24-11715Courtesy of AUDI OF AMERICA, LLC
  1. 1 -  Oxygen sensor 1 after catalytic converter -GX7-
  2. 1 -  Oxygen sensor after catalytic converter -G130-
  3. 1 -  Heater for oxygen sensor 1 after catalytic converter -Z29-
  4. 2 -  Oxygen sensor 1 before catalytic converter -GX10-
  5. 2 -  Heated oxygen sensor -G39-
  6. 2 -  Oxygen sensor heater -Z19-
