Engine Top, Part I

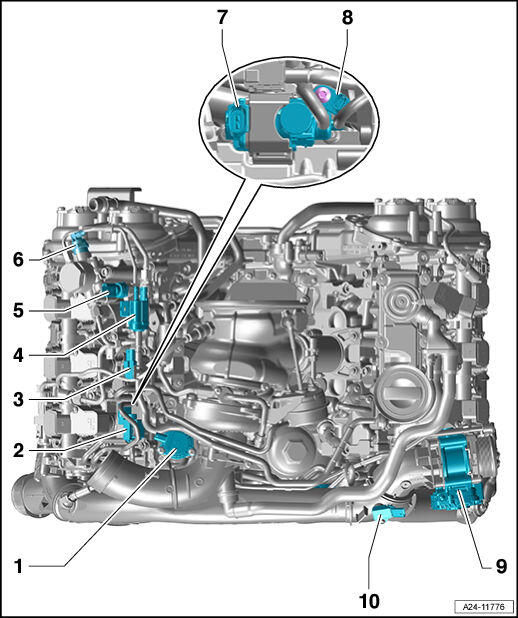

Fig 1: Identifying Top Engine Components (3.0L TFSI CWGD) (1 Of 2)

GWWA24-11776

Courtesy of AUDI OF AMERICA, LLC

1 - Recirculation valve, Bank 1 -N625-
2 - Mechanical coolant pump switch valve -N649-
3 - Tank ventilation pressure sensor 1 -G950-
4 - EVAP canister purge regulator valve 1 -N80-
5 - Low fuel pressure sensor -G410-
6 - Fuel metering valve -N290-
7 - Wastegate bypass regulator valve -N75-
8 - Engine cover temperature sensor -G765-
9 - Throttle valve control module -J338-
10 - Manifold absolute pressure sensor -G71-
