Auxiliary Battery -A1- Component Location And Connector End View: Notes

Component Location

In luggage compartment.

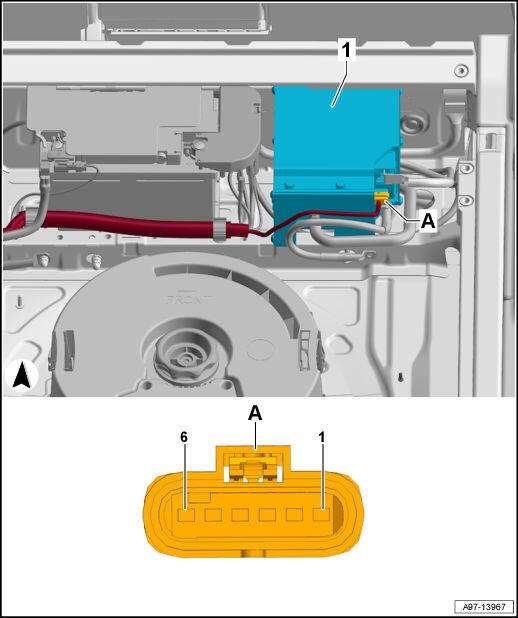

Fig 1: Auxiliary Battery -A1- Component Location And Connector End View
GWWA97-13967Courtesy of AUDI OF AMERICA, LLC
  1. 1 -  Auxiliary Battery -A1-
  2. A -  6-Pin Connector -T6bu-, black
