Fuel Tank Lead Detection Control Module -J909- Component Location And Connector End View: Notes

Component Location

On tank, rear right.

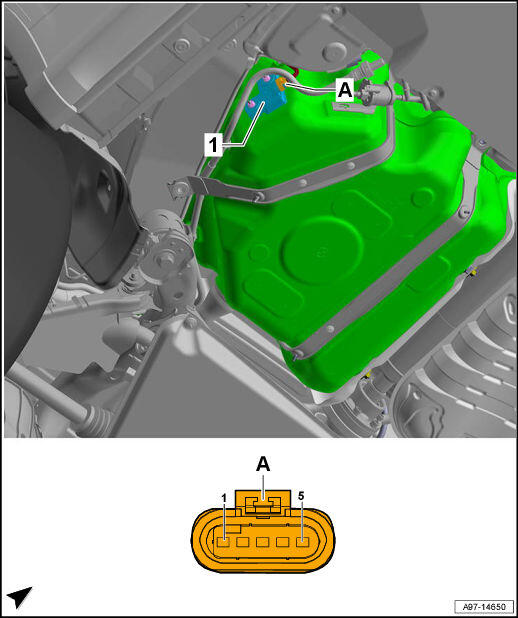

Fig 1: Fuel Tank Lead Detection Control Module -J909- Component Location And Connector End View
GWWA97-14650Courtesy of AUDI OF AMERICA, LLC
  1. 1 -  Fuel Tank Lead Detection Control Module -J909-
  2. A -  5-Pin Connector -T5sm-, black
