Transmission Control Module (TCM) -J217-: Notes

Component Location

On transmission.

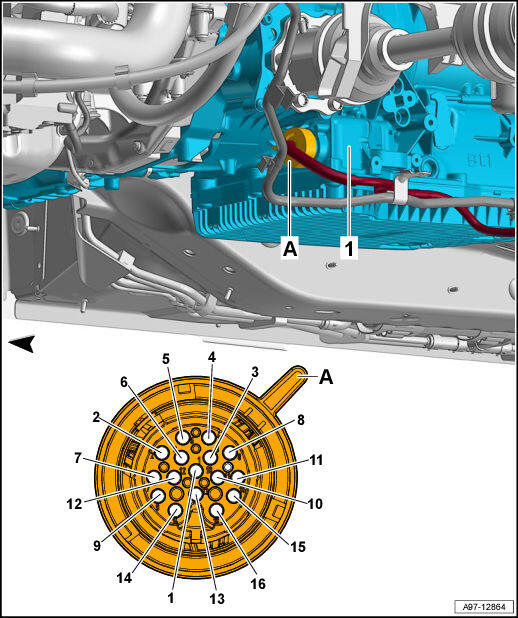

Fig 1: Transmission Control Module (TCM) -J217- Component Location And Connector End View
GWWA97-12864Courtesy of AUDI OF AMERICA, LLC
  1. 1 -  Transmission Control Module (TCM) -J217-
  2. A -  16-Pin Connector -T16a-, black
