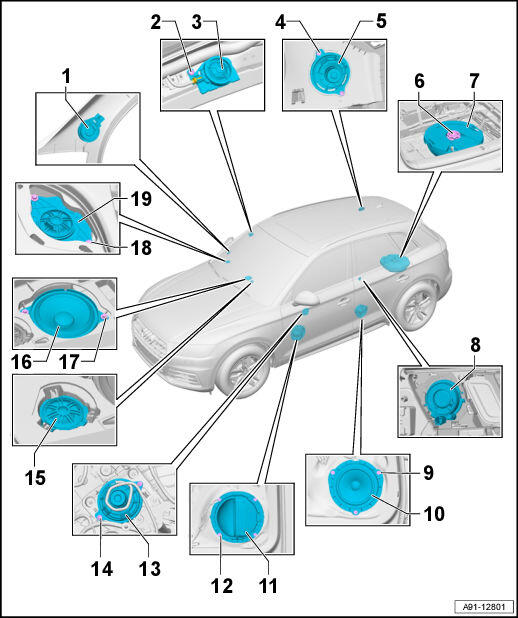

Sound Systems
Courtesy of AUDI OF AMERICA, LLC
- 1 -
Right front treble speaker -R22-
- 1 -
Left front treble speaker -R20-
- 3 -
Right front treble speaker 2 -R221-
- 3 -
Left front treble speaker 2 -R220-
- 5 -
Right effects speaker -R210-
- 5 -
Left effects speaker -R209-
- 7 -
Subwoofer -R211-
- 8 -
Left rear treble speaker -R14-
- 8 -
Right rear treble speaker -R16-
- 10 -
Left rear bass speaker -R15-
- 10 -
Right rear bass speaker -R17-
- 11 -
Left front bass speaker -R21-
- 11 -
Right front bass speaker -R23-
- 13 -
Left front midrange speaker -R103-
- 13 -
Right front midrange speaker -R104-
- 15 -
Center speaker 2 -R219-
- 16 -
Center speaker -R208-
- 19 -
Right front midrange speaker 2 -R277-
- 19 -
Left front midrange speaker 2 -R276-
- 1 -
Right front treble speaker -R22-
- 1 -
Left front treble speaker -R20-
