Overview - Rear Side Window
WARNING: This page is about a different car, the 2025 Audi SQ5 Sportback, 2025 Audi SQ5, 2025 Audi Q5 e, 2025 Audi Q5 Sportback, and 2025 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.

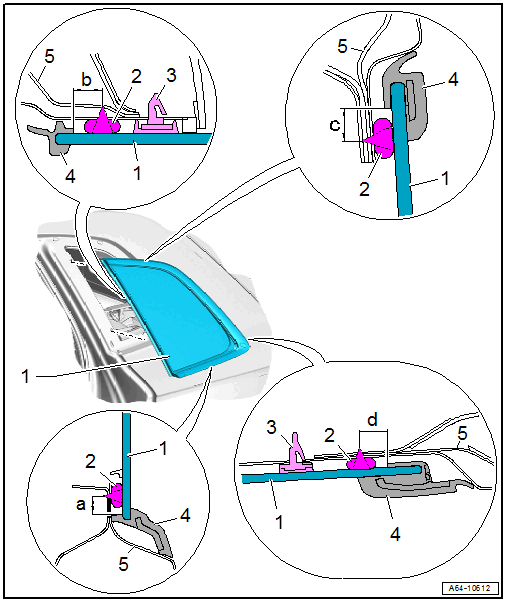

The following dimensions represent the distances at the marked points. This must also be oriented to the layout of the original adhesive bead on the removed component.
- Rear Side Window
- Removing and Installing. Refer to REAR SIDE WINDOW, REMOVING AND INSTALLING .
- After installing push in first with the retainers -item 3-.
- Adhesive Bead
- Observe the minimum curing time. Refer to MINIMUM CURING TIMES FOR BONDED WINDOWS .
- Note the different distances to the window edge
- Dimension -a- = 7.9 mm
- Dimension -b- = 7.7 mm
- Dimension -c- = 7.8 mm
- Dimension -d- = 7.9 mm
- Adhesive bead thickness. Refer to Adhesive application: .
- Locating Pin
- No replacement part
- Is cut through when removing the window
- Molding
- On the side window frame
- Must not be damaged in the visible area
- Body
