00 General, Technical Data: Tools: Notes

WARNING: This page is about a different car, the 2025 Audi SQ5 Sportback, 2025 Audi SQ5, 2025 Audi Q5 e, 2025 Audi Q5 Sportback, and 2025 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Resistance Spot Welder:VAS6530 or :VAS6530A
Resistance Spot Welder:VAS6545 or :VAS6545A
Resistance Spot Welder: VAS6755
Resistance Spot Welder:VAS821 101
Resistance Spot Welder:VAS821 201
Gas-Shielded Welder 195A:VAS6044A
Gas-Shielded Welder:VAS6045A
Gas-Shielded Welder:VAS821 001
Gas-Shielded Welder:VAS821 003
Gas-Shielded Welder:VAS821 005
Welding Tool:VAG1959A
FD Bolt Socket:VAS852007A
Flow Drill Screw Socket Set:VAS6426
Flow Drill Socket Repair Set:VAS6631
Measuring and Alignment System:VAS6526 Basic
Measuring and Alignment System - Professional:VAS6527
Measuring and Alignment System - Professional Plus:VAS6528
Pneumatic Brush Grinder Set:VAS6446 A
Welding Emission Exhaust System:VAS892 003
Fume Extraction Swing Arm:VAS6571/1
Flat Blade Scraper:VAS5448
Pneumatic-Hydraulic Riveter Set:VAS6790 or
Pneumatic-Hydraulic Riveter Set:VAS6791 or
Pneumatic-Hydraulic Riveter - Booster:VAS6790/20
Pneumatic-Hydraulic Riveter Set - Supplementary Riveting Set:VAS6790/2
Compact Riveting Device:VAS6792
Compact Riveting Device - Riveting Accessories:VAS6792/1
Compact Riveting Device - Extension:VAS6792/2
Rechargeable Riveter:VAS843 001
Rechargeable Riveter:VAS843 003
Rechargeable Riveter - Accessory Set 1:VAS5279/1
Pneumatic Edge Milling Unit:VAS882 005
Pneumatic Body Saw:VAS6780
Pneumatic Sabre Saw:VAS882 003

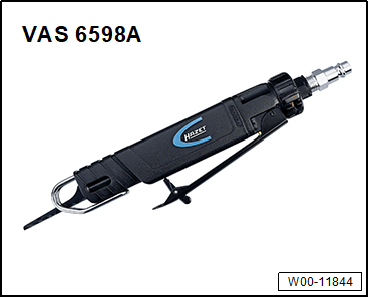

Pneumatic Body Saw:VAS6598A or :VAS6598

Courtesy of AUDI OF AMERICA, LLC
Tin Snips:VAS5356
Tin Snips - Right Handed:VAS5357
Angle Grinder:VAS5167B
Belt Sander:VAS881 003
Belt Sander:VAS881 003A
Pneumatic Gun - 18 Bar:VAS6648
Pop Rivet Pliers:VAG1765C
Pop Rivet Pliers:VAS6792/4
Pop Rivet Nut Pliers:VAS5072A

Fig 1: Pop Rivet Nut Pliers (VAS5072A)
Courtesy of AUDI OF AMERICA, LLC
Rivet Pliers:VAS6967
Pneumatic Rivet Gun:VAS6759
Drill - 1100 Watt:VAS6267 A

Fig 2: 1100 Watt Drill (VAS6267 A)
Courtesy of AUDI OF AMERICA, LLC
Spot Weld Breaker:VAS6322A

Fig 3: Spot Weld Breaker (VAS6322 A)
Courtesy of AUDI OF AMERICA, LLC
Spot Weld Breaker:VAG1731A or Spot Weld Breaker: VAS882 001
Double Cartridge Adhesive Gun:VAS5237

Fig 4: Double Cartridge Adhesive Gun (VAS5237)
Courtesy of AUDI OF AMERICA, LLC
Window Cutter:VAG1561A or Window Cutter:VAG1561B
Telescoping Gauge - 41.5-92.5cm:VAS5159 or Telescoping Gauge - 92-260cm:VAS5160

Fig 5: Alignment Bracket Set -- VAS5160
Courtesy of AUDI OF AMERICA, LLC
Mechanical Door Brace:VAG1438

Fig 6: Door Brace (V.A.G 1438)
Courtesy of AUDI OF AMERICA, LLC
Double Suction Lifter:VAG1344 or Installation Magnets:VAS6739

Fig 7: Double Suction Lifter
Courtesy of AUDI OF AMERICA, LLC
Installation Magnets:VAS6739
Adjustment Gauge:3371

Fig 8: 3371 Special Tool
Courtesy of AUDI OF AMERICA, LLC
Pneumatic Cartridge Gun:VAG1761/1

Fig 9: Compressed Air Gun (V.A.G 1761/1)
Courtesy of AUDI OF AMERICA, LLC
Tensioning Strap:T10038

Fig 10: Identifying Special Tools -- Tensioning Belt T10038
Courtesy of AUDI OF AMERICA, LLC
Cartridge Heater:VAG1939A

Fig 11: Cartridge Heater
Courtesy of AUDI OF AMERICA, LLC
Rechargeable Riveter:VAS843 001
Infrared Heater:VAS6879
Aluminum Tool Set:VAG2010/2A
Collision Tool Trolley:VAG2010/2A-1
Torque Wrench 1783 - 2-10Nm:VAG1783
Torque Wrench, 6-50Nm:VAG1331A
Crack Detection Kit:VAG2014
Grindstone Holder:VAG1931 or Grindstone Holder:VAG1931A
