Battery With Visual Indicator

WARNING: This page is about a different car, the 2025 Audi SQ5 Sportback, 2025 Audi SQ5, 2025 Audi Q5 e, 2025 Audi Q5 Sportback, and 2025 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

There is risk of explosion if the visual indicator is colorless or light yellow!

Do not jump start the vehicle.
Do not check or charge the battery.
Replace the battery.

The battery is in the luggage compartment.

Removal Procedures:

-- Remove the front luggage compartment floor. Refer to LUGGAGE COMPARTMENT FLOOR, REMOVING AND INSTALLING .

Courtesy of AUDI OF AMERICA, LLC

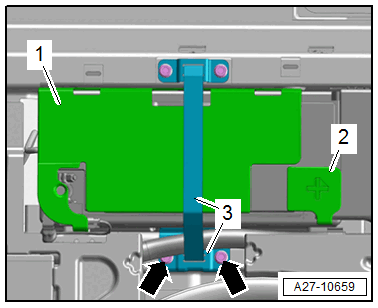

-- Remove the battery cover -1-.

Procedure:

-- Check the battery housing for the following:

Corrosion or damage to the battery terminals
Mechanical damage to the battery housing or cover, recognizable by electrolyte leakage or crystallization on the damaged location.

-- Replace damaged batteries.

-- Before checking the electrolyte level, carefully tap on the visual indicator -arrow- with the handle of a screwdriver.

Fig 1: Identifying "Magic Eye" On Battery

Courtesy of AUDI OF AMERICA, LLC

-- Read the battery electrolyte level using the color display. Two different results are possible:

Color display on visual indicator:	Action:
Black or green	Battery electrolyte level is OK: no further action necessary.
Colorless or light yellow	Battery electrolyte level too low: the battery must be replaced.

Installation procedures occur in reverse order.

NOTE:

The visual indicator is also called the ALI (Acid Level Indicator).

Only use the visual indicator for assessing the electrolyte level!

Bubbles can build up under the visual indicator when the battery is charging and also while driving, causing the color display to be incorrect. Gently tapping on the visual indicator dissolves these bubbles.
