Overview - Rear Level Control System Sensor

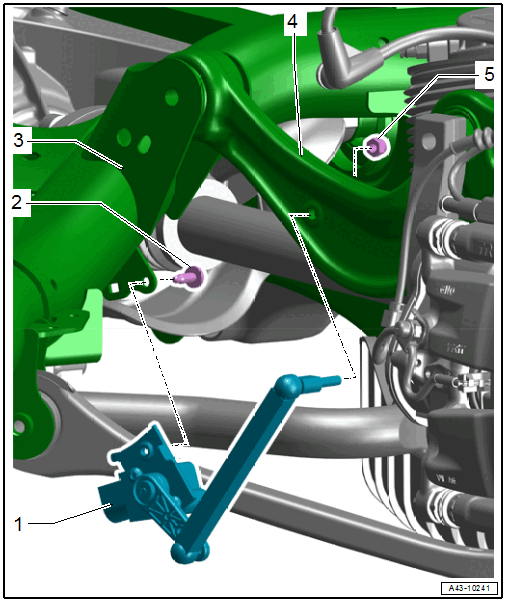

Fig 1: Exploded View Of Rear Level Control System Sensor

Courtesy of AUDI OF AMERICA, LLC

1. Rear Level Control System Sensor
   • Left Rear Level Control System Sensor -G76-
   • Right Rear Level Control System Sensor -G77-
   • with coupling rod and retaining plate
   • Removing and Installing. Refer to LEFT AND RIGHT REAR LEVEL CONTROL SYSTEM SENSOR -G76- / -G77-, REMOVING AND INSTALLING .
   • Installation position: sensor coupling rod points toward the rear
2. Bolt
   • 9 Nm
3. Subframe
4. Front Upper Transverse Link
5. Nut
   • Self-locking
   • Replace after removing
   • 9 Nm
