Component Location Overview - Dynamic Ride Control (DRC)

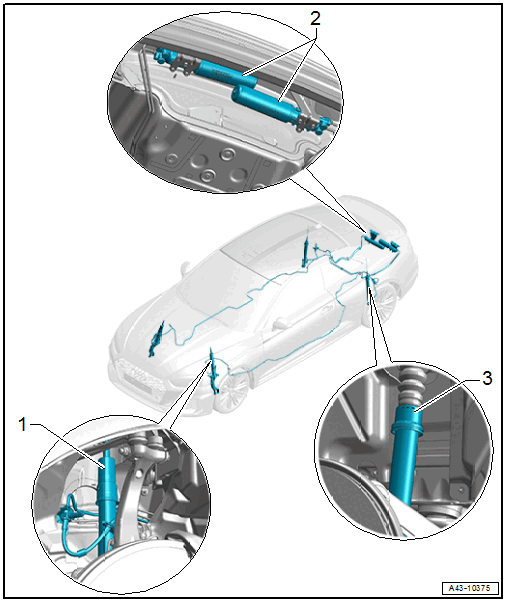

Fig 1: Identifying Dynamic Ride Control (DRC) Components

Courtesy of AUDI OF AMERICA, LLC

1. Front Shock Absorber
   • Overview. Refer to OVERVIEW - FRONT SHOCK ABSORBERS .
2. Central Valves
   • Overview. Refer to OVERVIEW - CENTRAL VALVE .
   • Front Left and Rear Right Shock Absorber, Left Central Valve
   • Front Right and Rear Left Shock Absorber, Right Central Valve
3. Rear Shock Absorber
   • Overview. Refer to OVERVIEW - REAR SHOCK ABSORBERS .
