TV Tuner -R78- COMPONENT LOCATION AND CONNECTOR END VIEW: Notes

Component Location

In right luggage compartment, behind side panel trim.

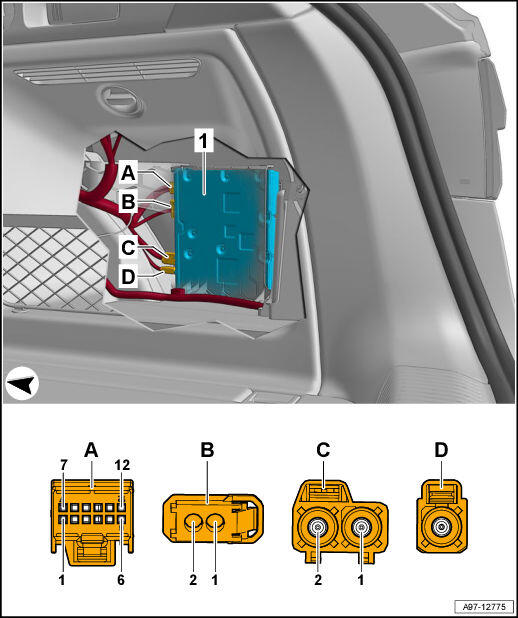

Fig 1: TV Tuner -R78- Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

1. TV Tuner -R78-

1. 12-Pin Connector -T12d-, black
2. 2-Pin Connector -T2ea-, black
   • MOST Bus
3. 4-Pin Connector -T4tv-, green
4. 2-Pin Connector -T2tv-, brown
