Rear Lid Control Module -J605- COMPONENT LOCATION AND CONNECTOR END VIEW: Notes

Component Location

Behind side trim, in left luggage compartment.

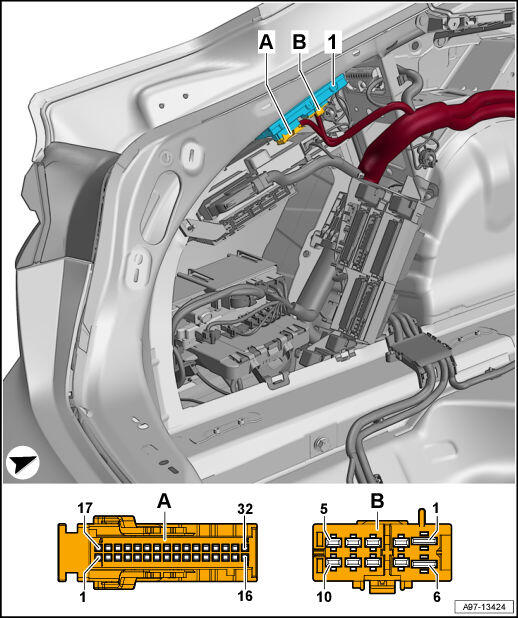

Fig 1: Rear Lid Control Module -J605- Component Location And Connector End View
GWWA97-13424Courtesy of AUDI OF AMERICA, LLC
  1. Rear Lid Control Module -J605-
  1. 10-Pin Connector -T10q-, black
  2. 32-Pin Connector -T32e-, black
