Digital Sound System Control Module -J525- (COUPE OR SPORTBACK): Notes

Component Location

In rear left in luggage compartment.

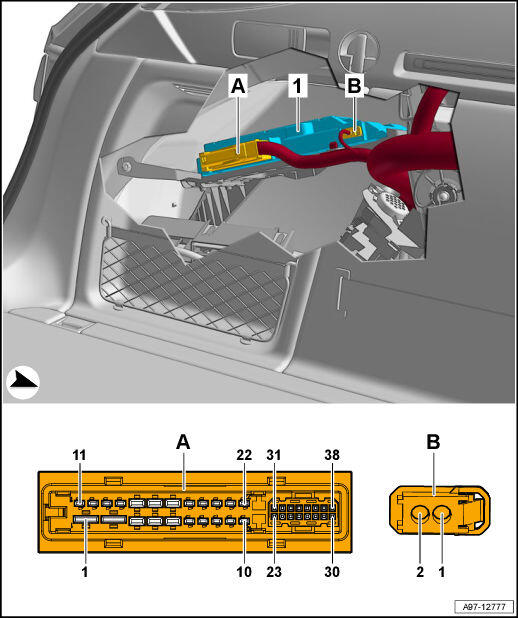

Fig 1: Digital Sound System Control Module -J525- Component Location And Connector End View (Coupe Or Sportback)

Courtesy of AUDI OF AMERICA, LLC

• 1 -  Digital Sound System Control Module -J525-
• A -  38-Pin Connector -T38-, black
  • through September 2019
• A -  38-Pin Connector -T38a-, black
  • from October 2019
• B -  2-Pin Connector -T2vb-, black
  • MOST Bus
  • through September 2019
