Convertible Top Control Module -J256- COMPONENT LOCATION AND CONNECTOR END VIEW: Notes

Component Location

In left luggage compartment, behind luggage compartment side panel trim.

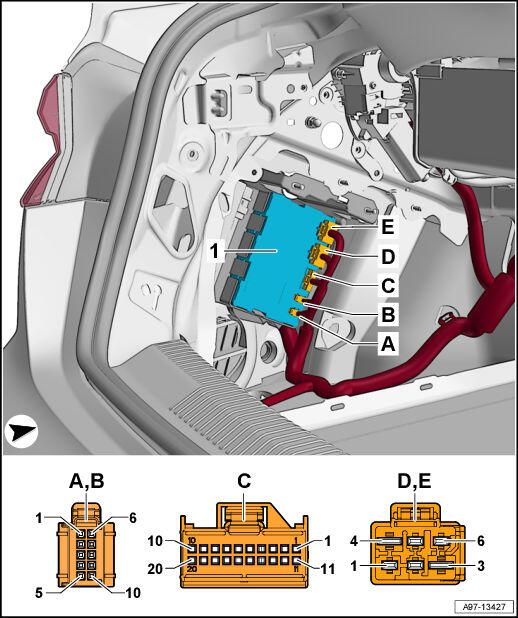

Fig 1: Convertible Top Control Module -J256- Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

1. Convertible Top Control Module -J256-

1. 10-Pin Connector -T10ee-, red
2. 10-Pin Connector -T10ed-, black
3. 20-Pin Connector -T20m-, black
4. 6-Pin Connector -T6eb-, brown
5. 6-Pin Connector -T6ea-, black
