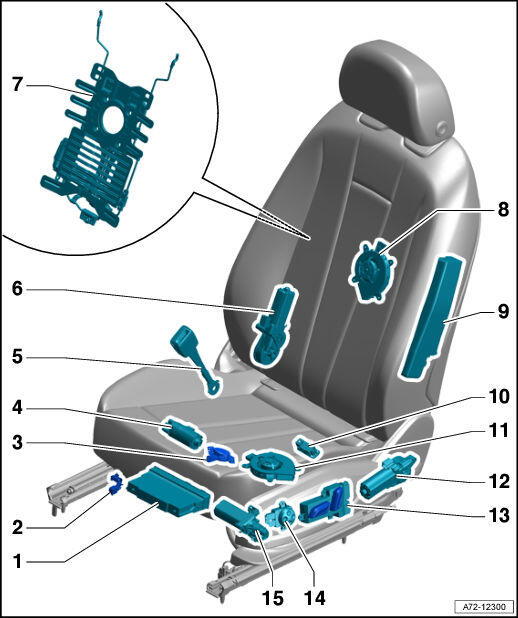

Seat Overview
Courtesy of AUDI OF AMERICA, LLC
- 2 -
Driver seat position sensor -G553-
- 2 -
Front passenger seat position sensor -G554-
- 3 -
Front passenger occupant detection sensor -G128-
- 4 -
Driver seat forward/back adjustment motor -V28-
- 4 -
Front passenger seat forward/back adjustment motor -V31-
- 5 -
Driver seat belt switch -E24-
- 5 -
Front passenger seat belt switch -E25-
- 6 -
Driver backrest adjustment motor -V45-
- 6 -
Front passenger backrest adjustment motor -V46-
- 7 -
Driver seat lumbar support curvature adjustment motor -V125-
- 7 -
Driver seat lumbar support height adjustment motor -V129-
- 7 -
Front passenger seat lumbar support curvature adjustment motor -V126-
- 7 -
Front passenger seat lumbar support height adjustment motor -V130-
- 8 -
Driver seat backrest blower fan -V388-
- 8 -
Front passenger seat backrest blower fan -V389-
- 9 -
Driver thorax airbag igniter -N199-
- 9 -
Front passenger thorax airbag igniter -N200-
- 10 -
Left rear footwell lamp -W45-
- 10 -
Right rear footwell lamp -W46-
- 11 -
Driver seat cushion blower fan -V390-
- 11 -
Front passenger seat cushion blower fan -V391-
- 12 -
Driver seat height adjustment motor -V245-
- 12 -
Front passenger seat height adjustment motor -V246-
- 13 -
Driver seat switch module -E663-
- 13 -
Front passenger seat switch module -E664-
- 14 -
Driver seat lumbar support adjustment switch -E176-
- 14 -
Front passenger seat lumbar support adjustment switch -E177-
- 15 -
Driver seat angle adjustment motor -V243-
- 15 -
Front passenger seat angle adjustment motor -V244-
