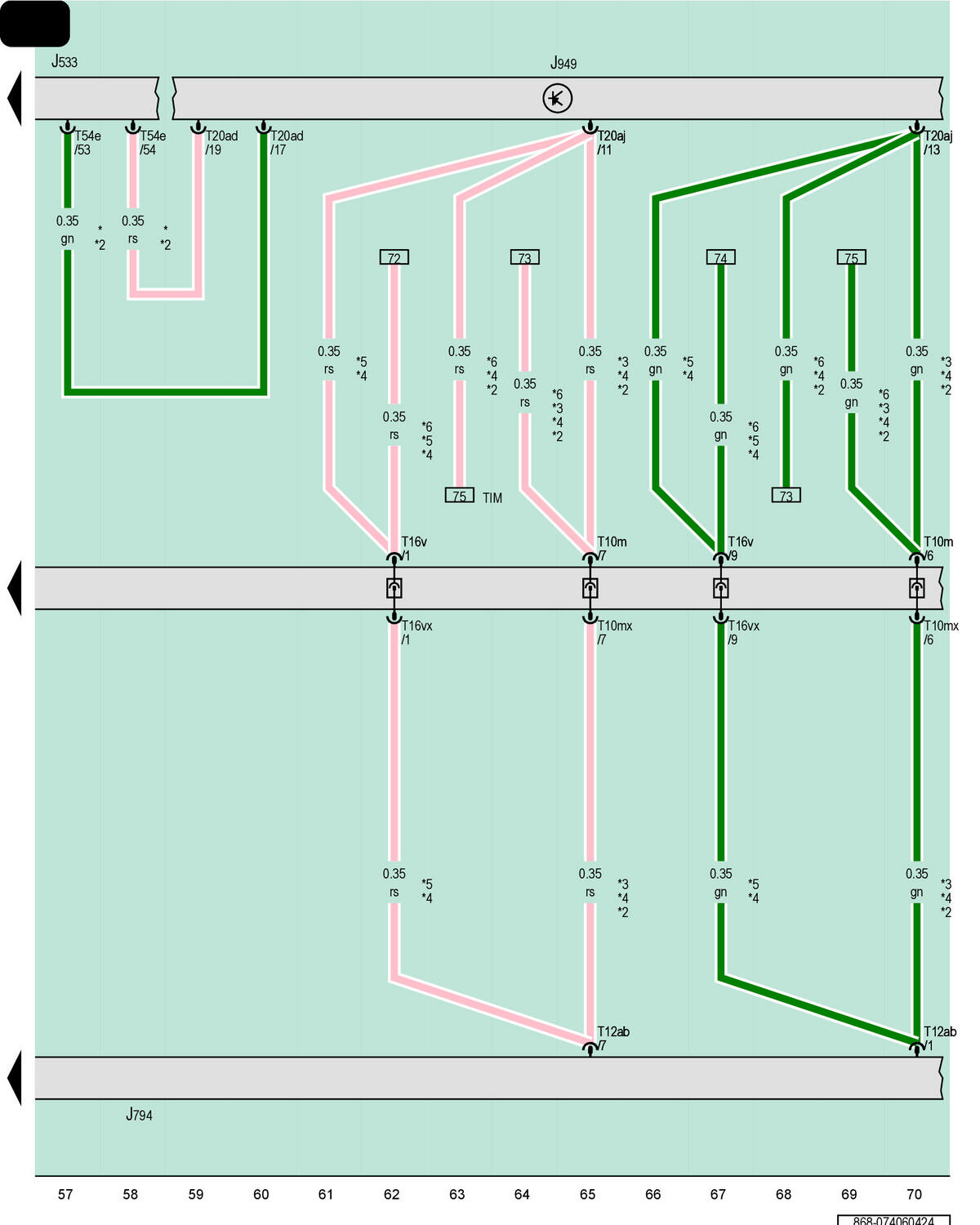

Data Bus On Board Diagnostic Interface, Information Electronics Control Module 1, Control Module For Emergency Call Module And Communication Unit
J533
Data Bus on Board Diagnostic Interface
J794
Information Electronics Control Module 1
J949
Control Module for Emergency Call Module and Communication Unit
T10m
10-Pin Connector, Black
T10mx
10-Pin Connector, Black
T12ab
12-Pin Connector, Green
T16v
16-Pin Connector, Brown
T16vx
16-Pin Connector, Brown
T20ad
20-Pin Connector, Black
T20aj
20-Pin Connector, Naturally Cloudy
T54e
54-Pin Connector, Gray
TIM
Coupling Point in Interior, Center
*
Ethernet Connection
*2
From July 2019
*3
Through November 2019
*4
Audio Bus Data Bus Wire
*5
From December 2019
*6
For Vehicles with Bang & Olufsen Sound System
