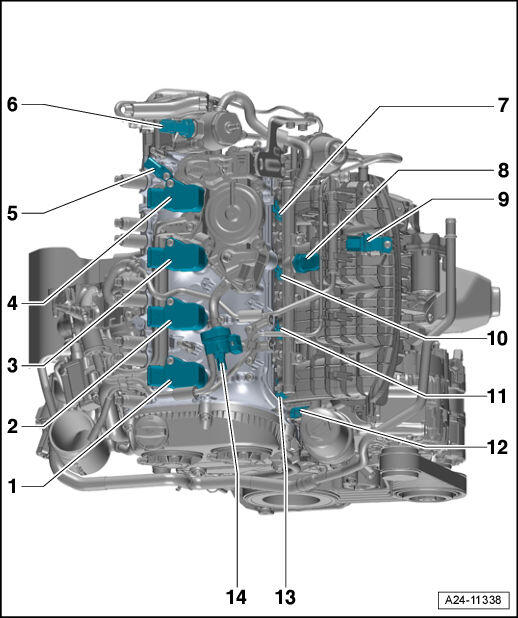

Engine Top
Courtesy of AUDI OF AMERICA, LLC
- 1 -
Ignition Coil 1 with Power Output Stage -N70-
- 2 -
Ignition Coil 2 with Power Output Stage -N127-
- 3 -
Ignition Coil 3 with Power Output Stage -N291-
- 4 -
Ignition Coil 4 with Power Output Stage -N292-
- 5 -
Camshaft Position Sensor 3 -G300-
- 6 -
Fuel Metering Valve -N290-
- 7 -
Cylinder 4 Fuel Injector 2 -N535- MPI
- 8 -
Low Fuel Pressure Sensor -G410-
- 9 -
Manifold Absolute Pressure Sensor -G71-
- 9 -
Intake Air Temperature Sensor -G42-
- 10 -
Cylinder 3 Fuel Injector 2 -N534- MPI
- 11 -
Cylinder 2 Fuel Injector 2 -N533- MPI
- 12 -
Intake Manifold Runner Position Sensor -G336-
- 13 -
Cylinder 1 Fuel Injector 2 -N532- MPI
- 14 -
EVAP Canister Purge Regulator Valve 1 -N80-
