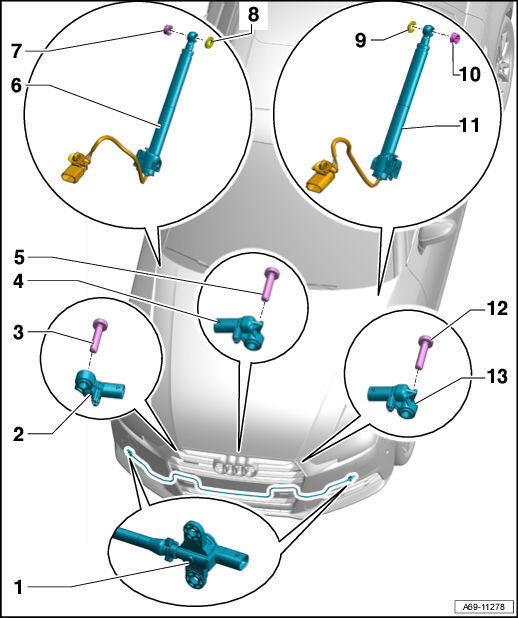

Pedestrian Protection
Courtesy of AUDI OF AMERICA, LLC
- 1 -
Driver side pedestrian protection crash sensor 2 -G851-
- In the molded foam part on the impact member
- 1 -
Front passenger side pedestrian protection crash sensor 2 -G852-
- In the molded foam part on the impact member
- 2 -
Front passenger side pedestrian protection crash sensor -G571-
- 4 -
Pedestrian protection center crash sensor -G693-
- On the bumper cover bracket
- 6 -
Pedestrian protection trigger 1 -G598-
- 11 -
Pedestrian protection trigger 2 -G599-
- 13 -
Driver side pedestrian protection crash sensor -G570-
