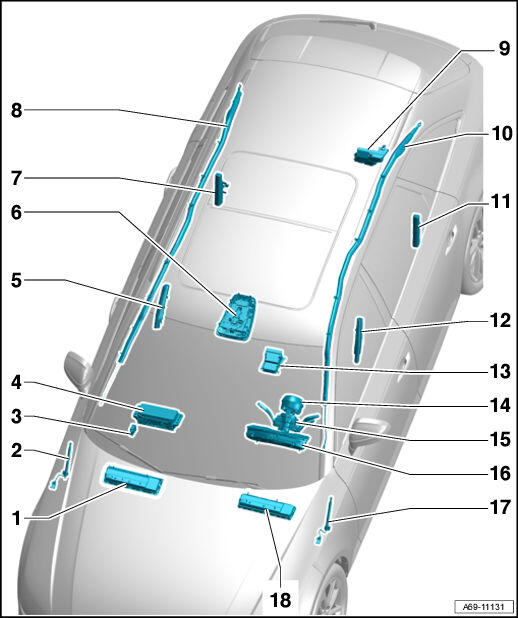

Comp. LOC. Airbag: Overview
Courtesy of AUDI OF AMERICA, LLC
- 1 -
Front passenger knee airbag igniter -N296-
- 2 -
Pedestrian protection trigger 2 -G599-
- 3 -
Front passenger airbag deactivation key switch -E224-
- 4 -
Front passenger airbag unit -NX3-
- 4 -
Front passenger airbag igniter 1 -N131-
- 4 -
Front passenger airbag igniter 2 -N132-
- 4 -
Front passenger airbag release valve igniter -N491-
- 5 -
Front passenger thorax airbag igniter -N200-
- 6 -
Front passenger airbag -disabled- indicator lamp -K145-
- 7 -
Passenger side rear thorax airbag igniter -N202-
- 8 -
Front passenger head curtain airbag igniter -N252-
- 9 -
Battery interrupt igniter -N253-
- 10 -
Driver head curtain airbag igniter -N251-
- 11 -
Driver side rear thorax airbag igniter -N201-
- 12 -
Driver thorax airbag igniter -N199-
- 14 -
Driver airbag igniter -N95-
- 14 -
Driver airbag release valve igniter -N490-
- 15 -
Airbag spiral spring/return spring with slip ring -F138-
- 16 -
Airbag indicator lamp -K75-
- 17 -
Pedestrian protection trigger 1 -G598-
- 18 -
Driver knee airbag igniter -N295-
