Power Sunroof Control Module -J245- / Sunroof Motor -V1- / Sunroof Blind Motor -V260- COMPONENT LOCATION AND CONNECTOR END VIEW: Notes
Component Location
On front and rear of sliding sunroof frame.

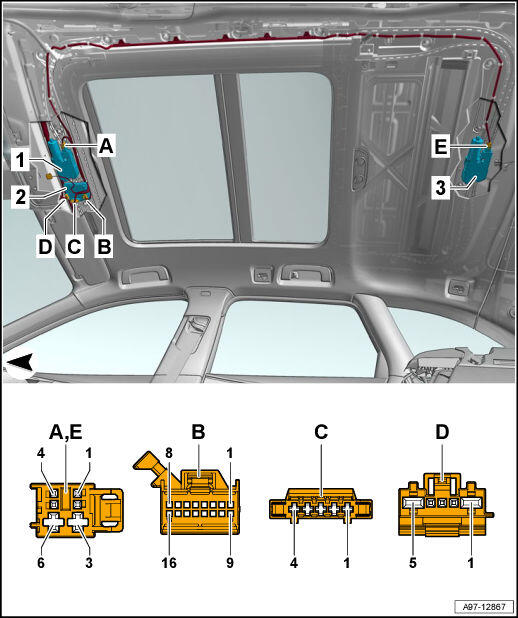

Fig 1: Power Sunroof Control Module -J245- / Sunroof Motor -V1- / Sunroof Blind Motor -V260- Component Location And Connector End View
- 1 - Sunroof Motor -V1-
- 2 - Power Sunroof Control Module -J245-
- 3 -
Sunroof Blind Motor -V260-
- for Avant
- for Sedan with China Equipment
- A - 6-Pin Connector -T6al-
- B - 16-Pin Connector -T16g-, black
- C - 4-Pin Connector -T4bt-, black
- D - 5-Pin Connector -T5ak-, black
- E -
6-Pin Connector -T6am-, black
- for Avant
- for Sedan with China Equipment
