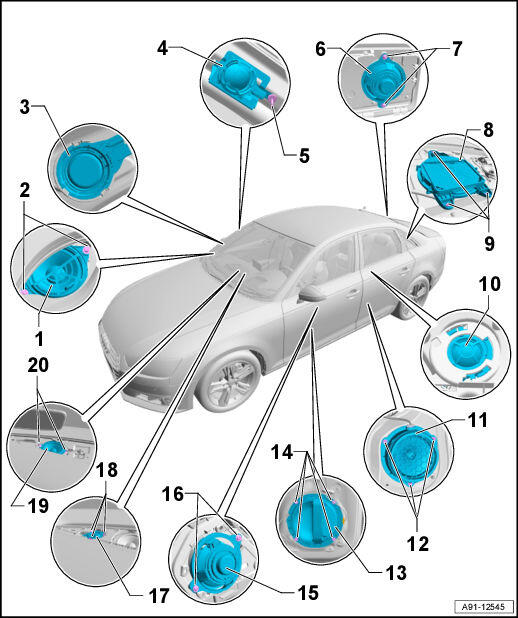

Sound Systems: Sedan
Courtesy of AUDI OF AMERICA, LLC
- 1 -
Right front treble speaker -R22-
- 1 -
Left front treble speaker -R20-, similar
- 1 -
Right front midrange speaker 2 -R277-
- 1 -
Left front midrange speaker 2 -R276-, similar
- 3 -
Right front treble speaker -R22-
- 3 -
Left front treble speaker -R20-, similar
- 4 -
Right front treble speaker 2 -R221-
- 4 -
Left front treble speaker 2 -R220-, similar
- 6 -
Right effects speaker -R210-
- located in the rear shelf.
- 6 -
Left effects speaker -R209-, similar
- located in the rear shelf.
- 8 -
Subwoofer -R211-
- located in the rear shelf.
- 10 -
Left rear treble speaker -R14-
- located inside the rear doors at the top.
- 10 -
Right rear treble speaker -R16-
- located inside the rear doors at the top.
- 11 -
Left rear bass speaker -R15-
- located at the bottom of the rear doors.
- 11 -
Right rear bass speaker -R17-
- located at the bottom of the rear doors.
- 13 -
Left front bass speaker -R21-
- located at the bottom of the front doors.
- 13 -
Right front bass speaker -R23-
- located at the bottom of the front doors.
- 15 -
Left front midrange speaker -R103-
- located in the center of the front doors.
- 15 -
Right front midrange speaker -R104-
- located in the center of the front doors.
- 17 -
Center speaker 2 -R219-
- located in the center front of the instrument panel.
- 19 -
Center speaker -R208-
- located in the center front of the instrument panel.
