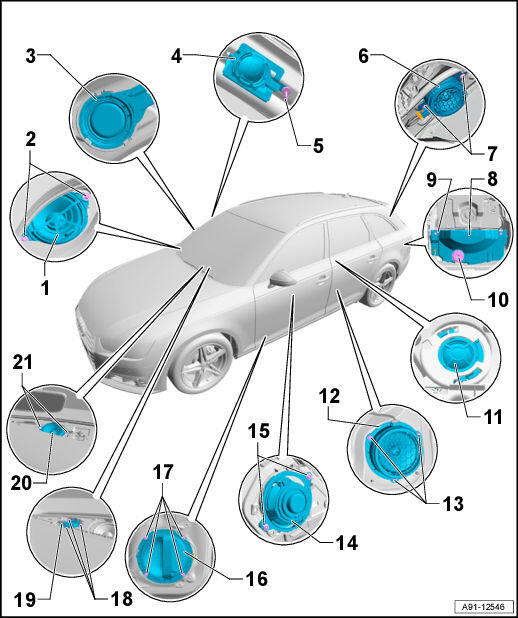

Sound Systems: AVANT
Courtesy of AUDI OF AMERICA, LLC
- 1 -
Left front treble speaker -R20-
- 1 -
Right front treble speaker -R22-
- 1 -
Left front midrange speaker 2 -R276-
- 1 -
Right front midrange speaker 2 -R277-
- 3 -
Left front treble speaker -R20-
- 3 -
Right front treble speaker -R22-
- 4 -
Left front treble speaker 2 -R220-
- 4 -
Right front treble speaker 2 -R221-
- 6 -
Right effects speaker -R210-
- located behind the D-pillar trim panels.
- 6 -
Left effects speaker -R209-
- located behind the D-pillar trim panels.
- 8 -
Subwoofer -R211-
- located in the spare tire well
- 11 -
Left rear treble speaker -R14-
- The Left Rear Treble Speaker -R14-/Right Rear Treble Speaker -R16- -1- are inside the rear doors at the top.
- 11 -
Right rear treble speaker -R16-
- located inside the rear doors at the top.
- 12 -
Left rear bass speaker -R15-
- located at the bottom of the rear doors.
- 12 -
Right rear bass speaker -R17-
- located at the bottom of the rear doors.
- 14 -
Left front midrange speaker -R103-
- located in the center of the front doors.
- 14 -
Right front midrange speaker -R104-
- located in the center of the front doors.
- 16 -
Left front bass speaker -R21-
- located at the bottom of the front doors.
- 16 -
Right front bass speaker -R23-
- located at the bottom of the front doors.
- 19 -
Center speaker 2 -R219-
- located in the center front of the instrument panel.
- 20 -
Center speaker -R208-
- located in the center front of the instrument panel.
