Engine Right

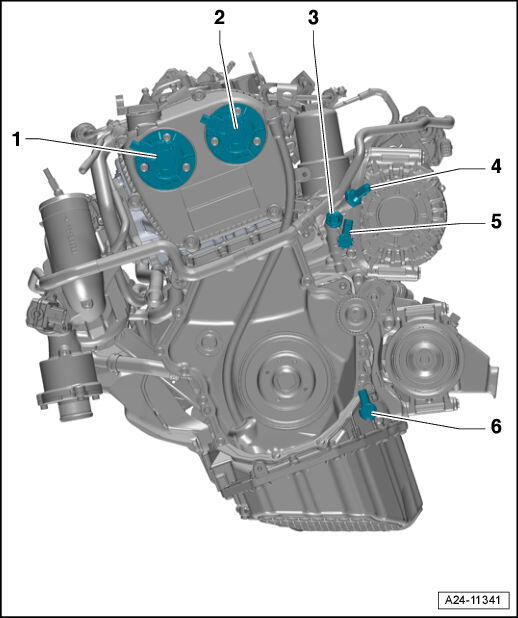

Fig 1: Identifying Right Engine Components (DBPA)

GWWA24-11341

Courtesy of AUDI OF AMERICA, LLC

1 - Exhaust Camshaft Adjustment Valve 1 -N318-
2 - Camshaft Adjustment Valve 1 -N205-
3 - Oil Pressure Switch -F22-
4 - Reduced Oil Pressure Switch -F378-
5 - Piston Cooling Nozzle Control Valve -N522-
6 - Oil Pressure Regulation Valve -N428-
