Engine Rear

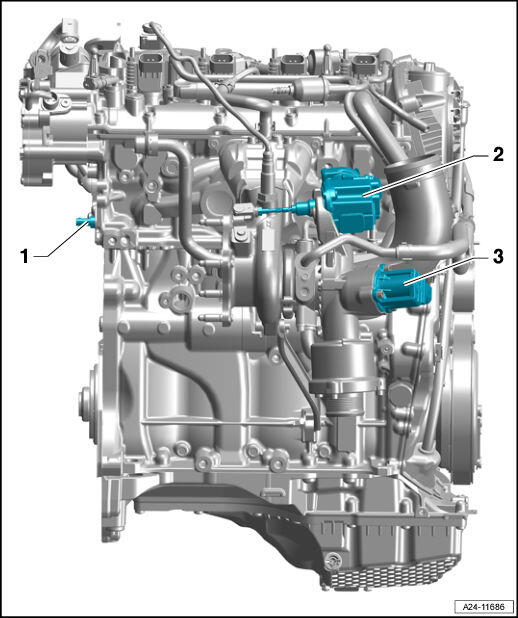

Fig 1: Identifying Rear Engine Components (DBPA)

GWWA24-11686

Courtesy of AUDI OF AMERICA, LLC

1 - Engine Coolant Temperature Sensor -G62-
2 - Charge Air Pressure Actuator -V465-
2 - Charge Air Pressure Actuator Position Sensor -G581-
3 - Turbocharger Recirculation Valve -N249-
