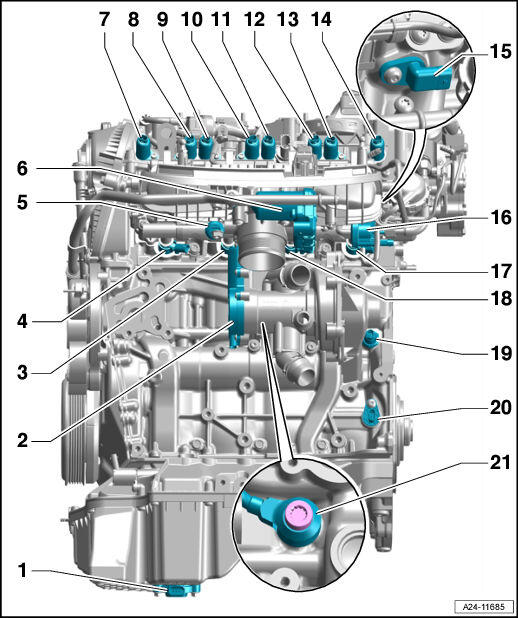

Engine Front
Courtesy of AUDI OF AMERICA, LLC
- 1 -
Oil level thermal sensor -G266-
- 2 -
Engine Temperature Control Actuator -N493-
- 3 -
Cylinder 2 Fuel Injector -N31- FSI
- 4 -
Cylinder 1 Fuel Injector -N30- FSI
- 5 -
Fuel Pressure Sensor -G247-
- 6 -
Throttle valve control module -GX3-
- 6 -
Throttle Valve Control Module -J338-
- 6 -
EPC Throttle Drive -G186-
- 6 -
EPC Throttle Drive Angle Sensor 1 -G187-
- 6 -
EPC Throttle Drive Angle Sensor 2 -G188-
- 7 -
Cam adjustment actuator 1 -F366-
- 8 -
Cam adjustment actuator 2 -F367-
- 9 -
Cam adjustment actuator 3 -F368-
- 10 -
Cam adjustment actuator 4 -F369-
- 11 -
Cam adjustment actuator 5 -F370-
- 12 -
Cam adjustment actuator 6 -F371-
- 13 -
Cam adjustment actuator 7 -F372-
- 14 -
Cam adjustment actuator 8 -F373-
- 15 -
Camshaft Position Sensor -G40-
- 16 -
Intake Manifold Runner Control Valve -N316-
- 17 -
Cylinder 4 Fuel Injector -N33- FSI
- 18 -
Cylinder 3 Fuel Injector -N32- FSI
- 19 -
Oil Pressure Switch, Level 3 -F447-
- 20 -
Engine Speed Sensor -G28-
- 21 -
Knock Sensor 1 -G61-
