Left And Right Rear Midrange Speaker -R105- / -R106-, Removing And Installing
WARNING: This page is about a different car, the 2025 Audi SQ7 and 2025 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

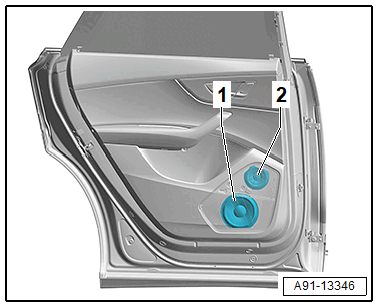

The Left Rear Midrange Speaker -R105- / Right Rear Midrange Speaker -R106- -2- are located in the rear doors to the left and right.
For vehicles from product improvement the Left Rear Midrange Speaker -R105- / Right Rear Midrange Speaker -R106- are integrated into the Left Rear Door Speaker -RX15- / Rear Door Speaker -RX16-.
The following speakers are installed in the Left Rear Door Speaker -RX15- / Right Rear Door Speaker -RX16- :
- Left Rear Bass Speaker -R15- / Right Rear Bass Speaker -R17- -1-
- Left Rear Midrange Speaker -R105- / Right Rear Midrange Speaker -R106- -2-
These speakers cannot be replaced separately.
Removing and installing on the left and right sides are the same.
-- Rear Midrange Speaker, Removing and Installing. Refer to LEFT AND RIGHT REAR BASS SPEAKER -R15- / -R17-, REMOVING AND INSTALLING, 8RF .
