Left And Right Front Speaker -R2- / -R3-, Removing And Installing: Removing
WARNING: This page is about a different car, the 2025 Audi SQ7 and 2025 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the outer speaker trim. Refer to Speaker Trim, Removing and Installing .

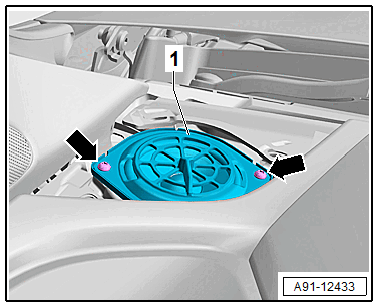

-- Remove the screws -arrows- from the Left Front Speaker -R2- -1- and remove the Left Front Speaker -R2- -1- upward.
-- Release and disconnect the connector from the Left Front Speaker -R2- -1-.
