Left And Right Front Midrange Speaker 2 -R276- / -R277-, Removing And Installing: Removing
WARNING: This page is about a different car, the 2025 Audi SQ7 and 2025 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the A-pillar upper trim panel. Refer to A-Pillar Trim Panel, Removing and Installing .

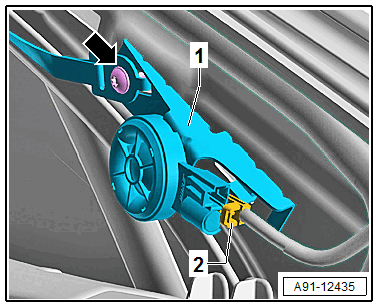

-- Release and disconnect the connector -2- from the Left Front Midrange Speaker 2 -R276- -1-.
-- Remove the bolt -arrow-.
-- Push the Left Front Midrange Speaker 2 -R276- -2- upward and remove.
