External Audio Source Connection -R199-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2025 Audi SQ7 and 2025 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the center console. Refer to Center Console, Removing and Installing .
-- Release and disconnect the connectors on the External Audio Source Connection -R199-.

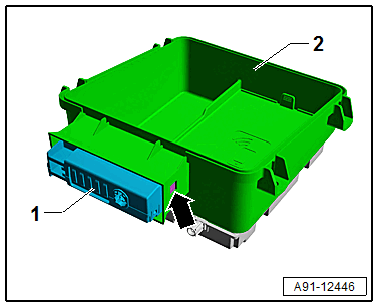

-- Press the tab -arrow- on the External Audio Source Connection -R199- -1- and remove the External Audio Source Connection -R199- -1- from the storage compartment -2-.
