Antenna Amplifiers -R24- / -R111- / -R82- / -R84-, Removing And Installing: Removing
WARNING: This page is about a different car, the 2025 Audi SQ7 and 2025 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the rear lid upper trim panel. Refer to Rear Lid Upper Trim Panel, Removing and Installing .

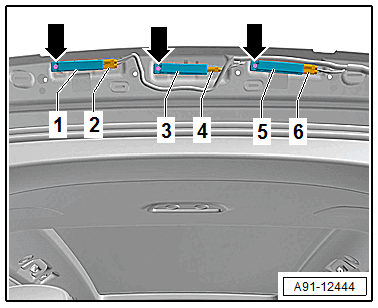

-- Release and disconnect the connectors -2, 4, and 6- on the antenna amplifier.
-- Release and disconnect the connectors from the rear window antennas.
-- Loosen the screws -arrows- several turns and remove the antenna amplifier from the rear lid.
