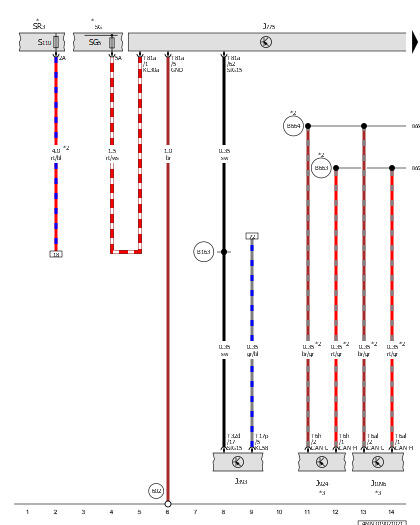

Comfort System Central Control Module, Drivetrain Control Module, Sway Stabilization Control Module, Sway Stabilization Control Module 2, Self-Leveling Suspension Fuse
J393
Comfort System Central Control Module
J775
Drivetrain Control Module
J924
Sway Stabilization Control Module
J1096
Sway Stabilization Control Module 2
SR3
Relay and Fuse Panel 3
SG5
Fuse 5 on Fuse Panel G
S110
Self-Leveling Suspension Fuse
SG
Fuse Panel G
T6al
6-Pin Connector, Black
T6h
6-Pin Connector, Black
T17p
17-Pin Connector, Brown
T32d
32-Pin Connector, Naturally Cloudy, Black
T81a
81-Pin Connector, Black
602
Ground Connection in Left Front Footwell
B163
Positive Connection 1 (15) (in Interior Wiring Harness)
B663
Suspension Sensor CAN Bus High Connection (in Main Wiring Harness)
B664
Suspension Sensor CAN Bus Low Connection (in Main Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuse Positions
*2
Depending on Equipment
*3
Refer to Applicable Dynamic Sway Stabilization Wiring Diagram
