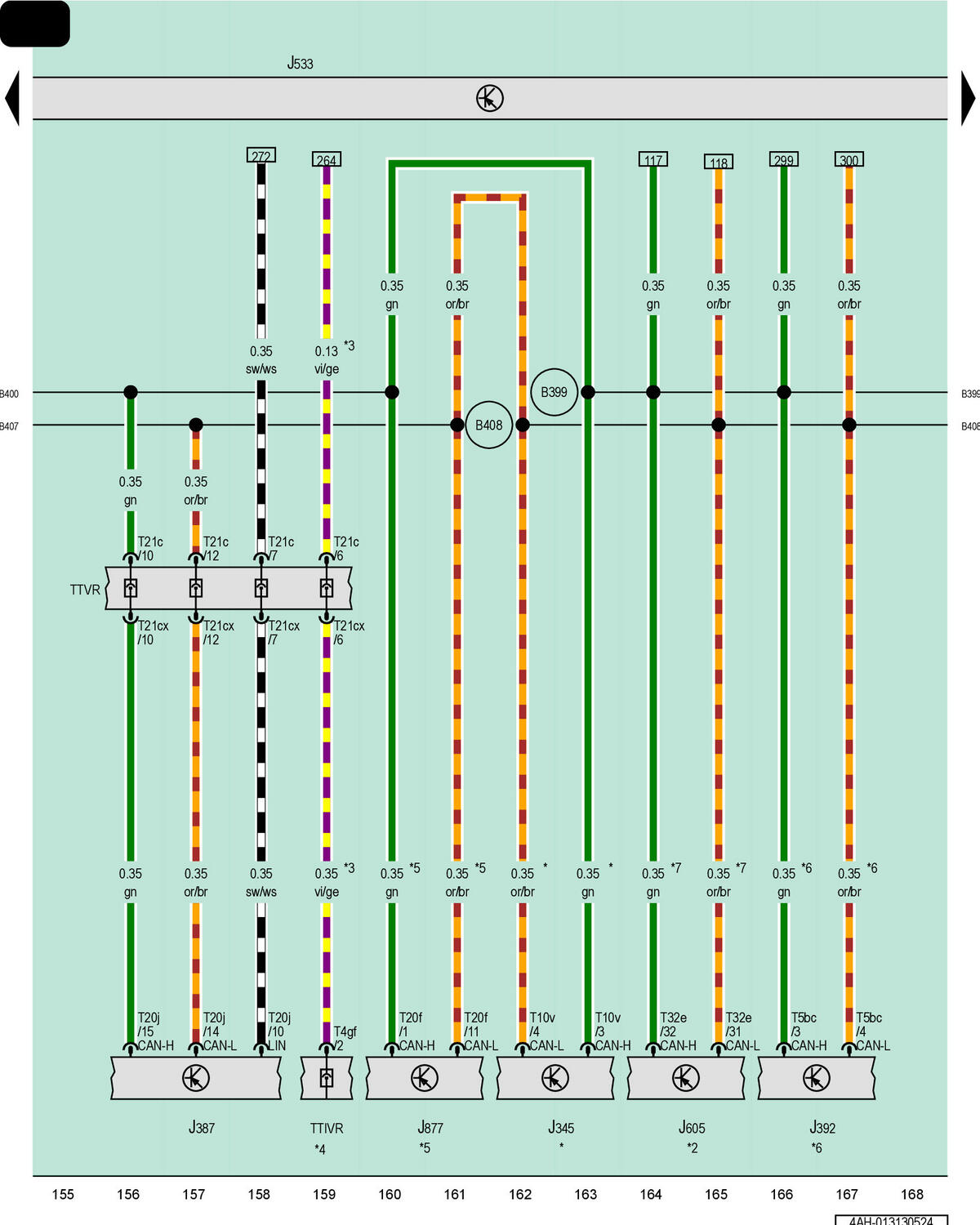

Towing Recognition Control Module, Front Passenger Door Control Module, Rear Sunroof Control Module, Data Bus On Board Diagnostic Interface, Rear Lid Control Module, Passenger Side Rear Seat Adjustment Control Module
J345
Towing Recognition Control Module
J387
Front Passenger Door Control Module
J392
Rear Sunroof Control Module
J533
Data Bus on Board Diagnostic Interface
J605
Rear Lid Control Module
J877
Passenger Side Rear Seat Adjustment Control Module
T4gf
4-Pin Connector, Black
T5bc
5-Pin Connector, Black
T10v
10-Pin Connector, Black
T20f
20-Pin Connector, Black
T20j
20-Pin Connector, White
T21c
21-Pin Connector, Black
T21cx
21-Pin Connector, Black
T32e
32-Pin Connector, Naturally Cloudy
TTIVR
Coupling Point in Right Front Door
TTVR
Right Front Door Coupling Point
B399
Comfort System CAN Bus, High Connection 3 (in Main Wiring Harness)
B400
Comfort System CAN Bus, High Connection 4 (in Main Wiring Harness)
B407
Comfort System CAN Bus, Low Connection 2 (in Main Wiring Harness)
B408
Comfort System CAN Bus, Low Connection 3 (in Main Wiring Harness)
*
For Vehicles with Trailer Hitch
*2
Refer to Applicable Power Rear Lid Wiring Diagram
*3
For Vehicles with Ambient Lighting
*4
Refer to Applicable Front Passenger Door Wiring Diagram
*5
For Vehicles with China Equipment
*6
For Vehicles with Panorama Sunroof
*7
Optional Equipment
