Park Assist

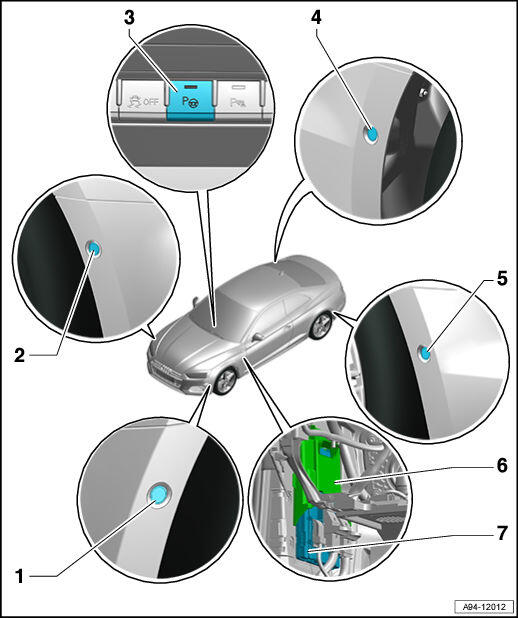

Fig 1: Identifying Park Assist Components

GWWA94-12012

Courtesy of AUDI OF AMERICA, LLC

1 - Left front parallel parking assistance sensor -G568-
2 - Right front parallel parking assistance sensor -G569-
3 - Parallel parking assistance button -E581-
4 - Right rear parallel parking assistance sensor -G717-
5 - Left rear parallel parking assistance sensor -G716-
7 - Vehicle electrical system control module J519
