Engine Top, Part I

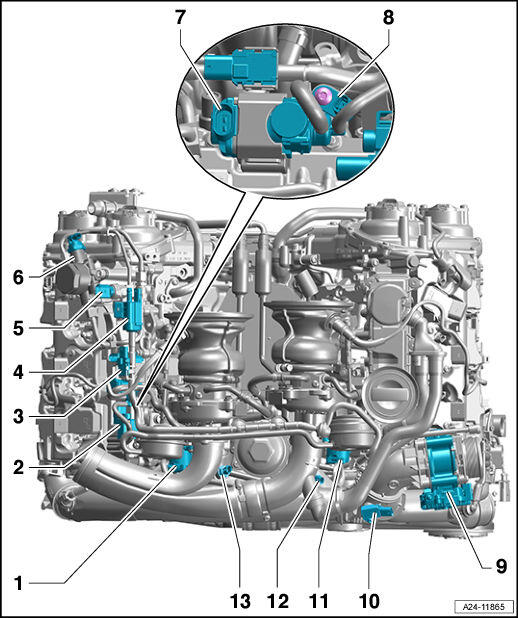

Fig 1: Identifying Top Of Engine Components Location (DECA) (1 Of 2)
GWWA24-11865Courtesy of AUDI OF AMERICA, LLC
  1. Recirculation valve, Bank 1 -N625-
  2. Mechanical coolant pump switch valve -N649-
  3. Tank ventilation pressure sensor 1 -G950-
  4. EVAP canister purge regulator valve 1 -N80-
  5. Low fuel pressure sensor -G410-
  6. Fuel metering valve -N290-
  7. Wastegate bypass regulator valve -N75-
  8. Engine cover temperature sensor -G765-
  9. Throttle valve control module -J338-
  10. Manifold absolute pressure sensor -G71-
  11. Recirculation valve, Bank 2 -N626-
  12. Charge air cooler temperature sensor 2 -G764-
  13. Charge air cooler temperature sensor 1 -G763-
