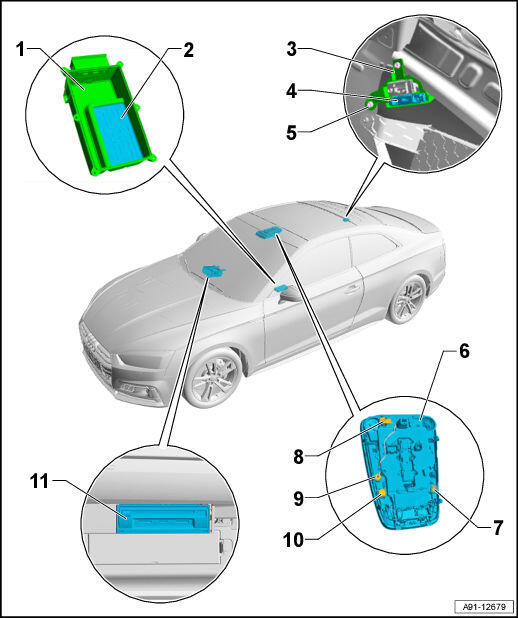

Comp. LOC. Radio: Telephone
Courtesy of AUDI OF AMERICA, LLC
- 2 -
Telephone baseplate -R126-
- The Telephone Baseplate is located under the front center armrest
- 4 -
Cellular telephone amplifier -R86-
- 7 -
Right front microphone -R141-
- 9 -
Interior microphone -R74-
- 10 -
Left front microphone -R140-
- 11 -
Information electronics control module 1 J794
